VOCs Combined Sampling Tube Stainless Steel with Copper Cap ¼” × 3½”

VOCs Combined Sampling Tube Stainless Steel with Copper Cap ¼” × 3½”

Description

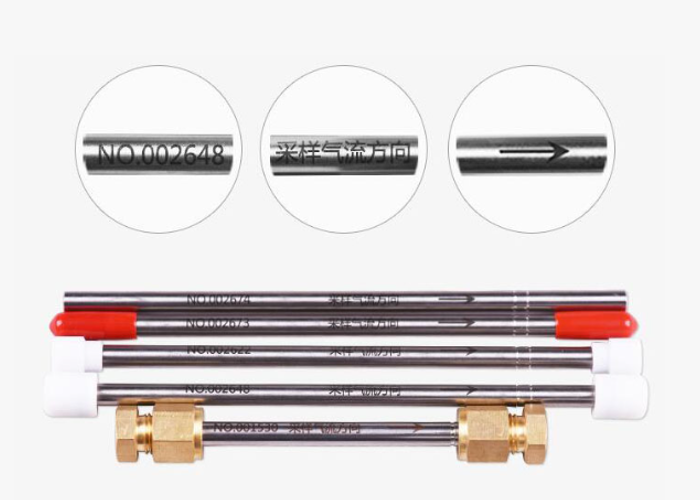

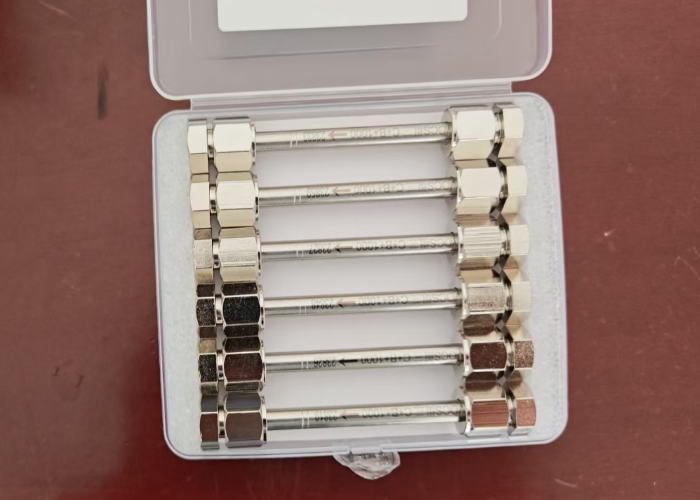

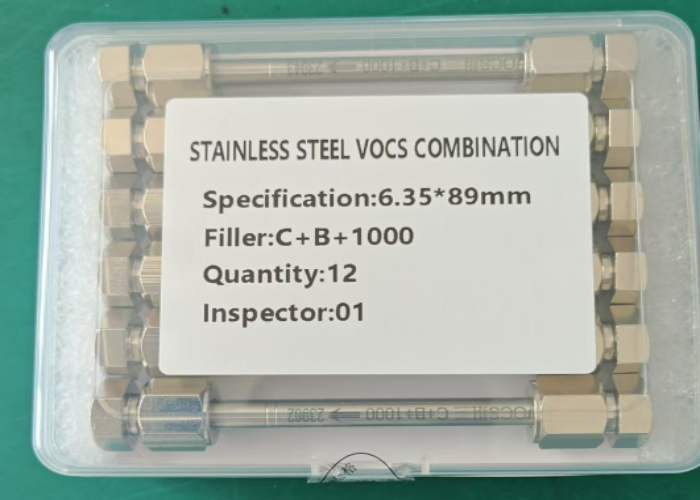

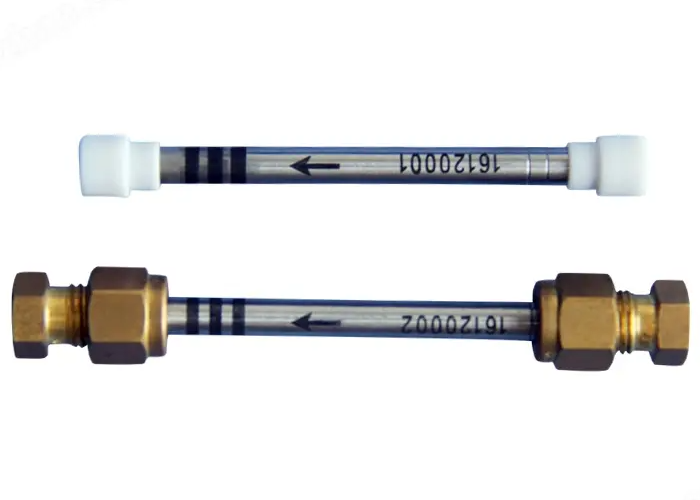

The VOCs Combined Sampling Tube (Stainless Steel with Copper Cap, ¼” × 3½”) is a precision-engineered thermal desorption sorbent tube designed for the reliable collection and analysis of volatile organic compounds (VOCs) in air and gas samples. Manufactured from high-grade stainless steel and sealed with durable brass/copper storage caps, this industry-standard sampling tube delivers exceptional performance in environmental monitoring, industrial hygiene, and indoor air quality testing applications.

This ¼-inch outer diameter × 3½-inch length (6.35 mm × 89 mm) tube conforms to the internationally recognized “industry standard” format, ensuring seamless compatibility with leading thermal desorption systems including PerkinElmer, Markes International, Dani, Shimadzu, and major domestic thermal desorbers. Available in multiple sorbent configurations—including single-bed, dual-bed, and triple-bed combinations—our VOCs sampling tubes are engineered to meet the rigorous demands of regulatory methods such as HJ734-2014, EPA TO-17, and EN ISO 16017.

VOCs Combined Sampling Tube Key Specifications

Sorbent Configurations

Our VOCs combined sampling tubes are available in multiple sorbent bed configurations to accommodate different VOC target compound ranges and regulatory methods:

Single-Bed Configuration

• Tenax TA (200 mg): 2,6-diphenyl-p-phenylene oxide porous polymer; ideal for medium to high-boiling VOCs, benzene, and TVOC detection

• Tenax GR: Tenax/graphite composite; extended range to lower-boiling compounds

• Activated Carbon: Coconut shell activated carbon for broad-spectrum VOC capture

Dual-Bed Combination (Combination 1 & 2)

• Combination 1: Tenax GR (30 mm) + Carbopack B (25 mm) – suitable for a wide range of VOCs including aromatic hydrocarbons

• Combination 2: Carbopack B (30 mm) + Carboxen 1000 (10 mm) – optimized for both volatile and semi-volatile compounds

Triple-Bed Combination (Combination 3)

• Carbopack C (13 mm) + Carbopack B (25 mm) + Carboxen 1000 (13 mm) – comprehensive coverage from C3 to C16 compounds

Regulatory & Method Compliance

Our VOCs combined sampling tubes are designed and manufactured to meet the stringent requirements of major international and national standards:

VOCs Combined Sampling Tube Applications

• Environmental Monitoring

• Industrial & Occupational Hygiene

• Indoor Air Quality (IAQ)

• Soil & Vapor Intrusion

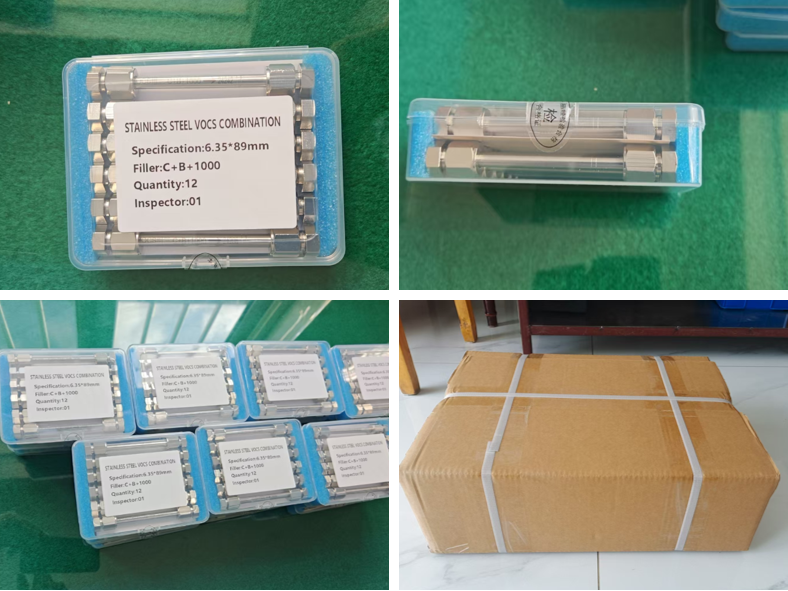

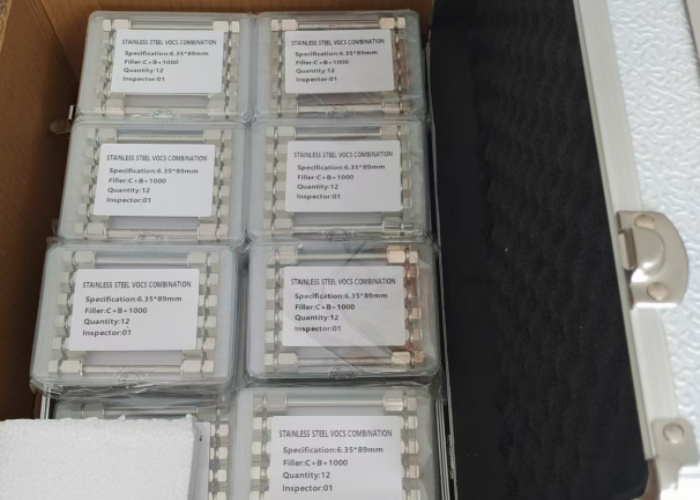

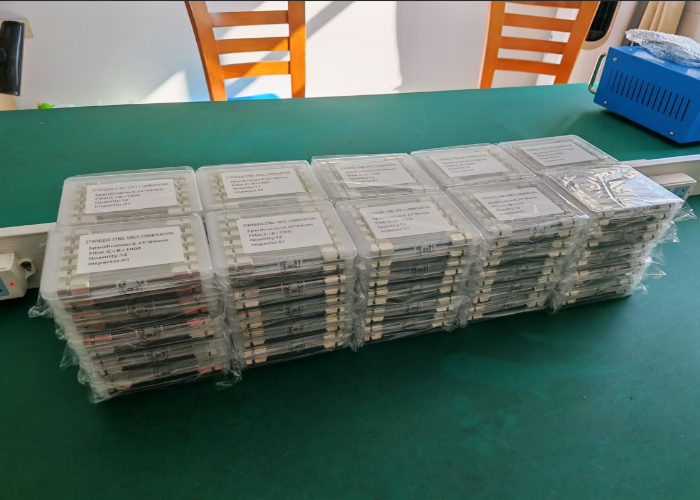

VOCs Combined Sampling Tube Packing & Loading

10 or 12 pcs/box

Why Choose Us?

• Industry Expertise: Years of specialized experience in environmental monitoring consumables manufacturing

• Quality Assurance: Rigorous quality control at every production stage to ensure batch-to-batch consistency

• Regulatory Compliance: Products designed to meet the latest international and Chinese standards

• Customization Capability: Flexible manufacturing to accommodate

• Competitive Pricing: Premium quality at cost-effective price points

Contact Us

For technical specifications, customized solutions, or to place an order, please contact our sales team. We are committed to providing professional products and responsive service to support your VOCs monitoring needs.
